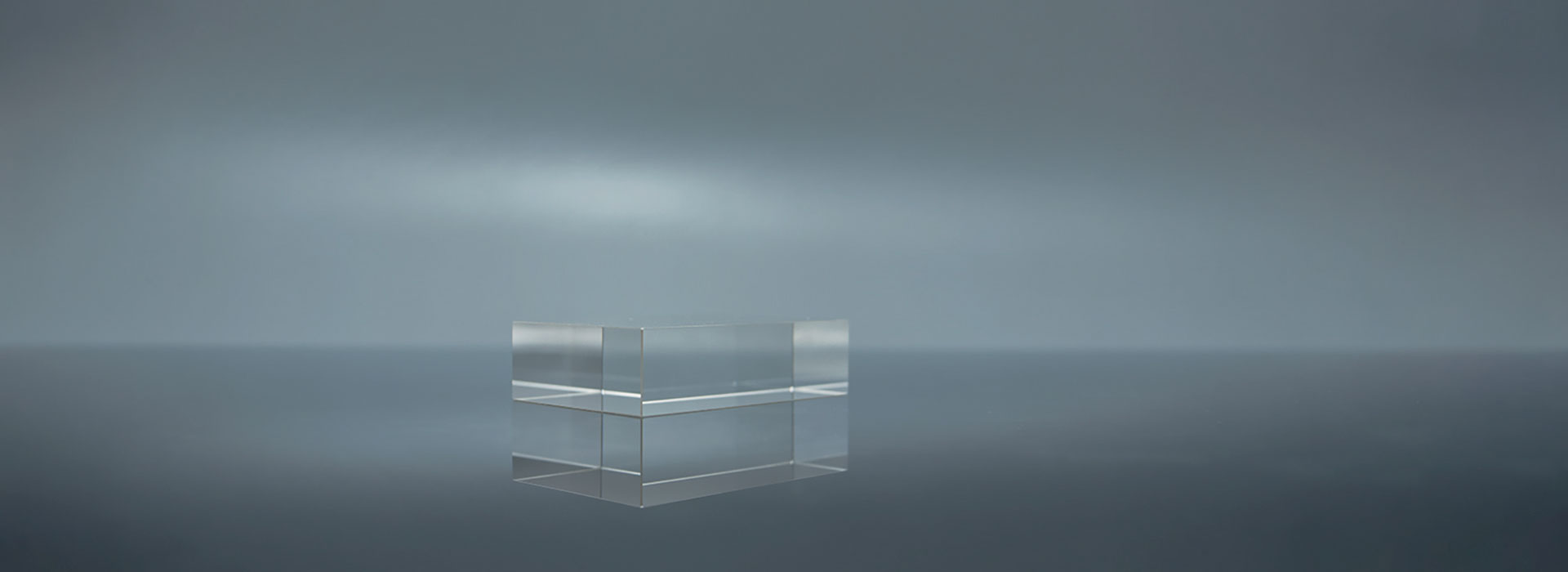

CeF3

As a good Faraday rotator single-crystals, cerium fluoride (CeF3) have attracted much attention in the field of magneto-optics due to their broad applications such as optical isolators. The magneto-optical effects of the Ce ions are known to be caused by the intra-ionic parity allowed electric dipole transition between the 4fN and 4fN-15d1 configurations.  These transitions are close to the absorption cut-off in the widely transparent fluorides, which leads to outstanding Verdet constants in the UV wavelength region. It is a good scintillation crystal with high density and short decay time. CeF3 Crystal is a suitable material in the measurements application of high counting rate, strong absorption irradiation and high time resolution process.

Download PDF
Ask for a test Sample FREE

Parameter

Physical and Chemical Properties
Crystal StructureHexagonal
Lattice Constants6.2001
Specific mass6.16g/cm3
Melting Point1443°C
Thermal Expansion /(10-6·K-1@25°C )11.5
Cleacage Plane (0001)
Optical characteristics
Transmission Range0.3 … 11 µm
Reflective Loss 6 … 16%@0.2 … 10 µm
Refractive Index1.62@400nm
Radiation Length/mm17
Magneto-optical Figure/(108·rad·W-1/(Tm))6.5@1075nm
Dielectric Constant7.33@f=2MHz
Emission Peak/nm340@slow, 310@fast
Decay Constant/ns30@slow, 8@fast
Light Output8.60%
Index of Refraction
λ(μm)n
0.31.7
0.41.65
0.51.63
0.61.62
11.6
21.59
Feature
Application
Literature
Feature
  • Unique and good transmittance in the UV wavelength region
  • Soluble in water and strong mineral acids
  • Slightly hygroscopic
  • High stopping power, radiation hardness and extremely fast response
  • Broad band gap
  • Susceptible to thermal shock
  • Possesses the fast cross-luminescence component at 195 and 220 nm with a lifetime of several hundred picoseconds
Application
  • Optical coating
  • Raw material for polishing powder, special glass, metallurgical applications
  • Decolorize glass
  • Optical isolator, optical nonreciprocal element, magneto-optical memory and magneto-optical modulator, optical fiber communication and integrated optical device, computer storage, logic operation and transmission function, magneto-optical display, magneto-optical recording, new microwave device, laser gyro
Literature
[1]  Yang Y ,  Zhang L ,  Li S , et al. Growth and mid-infrared luminescence property of Ho3+ doped CeF3 single crystal[J]. Infrared Physics & Technology, 2020, 105:103230.
[2]  Liu S ,  Hui Y ,  Zhu L , et al. Synthesis and luminescence properties of CeF3:Tb3+ nanodisks via ultrasound assisted ionic liquid method[J]. Journal of Rare Earths, 2014, 32(6):508-513.
[3]  Li H ,  J  Wang,  J  Chen, et al. Bridgman growth and magneto-optical properties of CeF_3 crystal as Faraday Rotator[J]. Optical Materials, 2020, 100(Feb.):109675.1-109675.4.
[4]  Yang Y ,  Zhang L ,  Li S , et al. Crystal growth and 570nm emission of Dy3+ doped CeF3 single crystal[J]. Journal of Luminescence, 2019, 215:116707-.
[5]  X  Li,  Zhang W ,  Dong L , et al. Low Temperature Molten Salt Synthesis of CeF3 and CeF3:Tb3+ Phosphors with Efficient Luminescence Properties[J]. Journal of Luminescence, 2018, 205.
[6]  Lin H J ,  H  Zhong. New mechanism and improved kinetics of hydrogen absorption and desorption of Mg(In) solid solution alloy milling with CeF3[J]. International Journal of Hydrogen Energy, 2019, 44(43).
[7]  Th A ,  Xw A ,  Hl B , et al. Enhanced hydrogen desorption/absorption properties of magnesium hydride with CeF3@Gn[J]. International Journal of Hydrogen Energy, 2020, 45(7):4754-4764.
[8]  Wan J ,  Sun L ,  Liu E , et al. Novel UV–vis-driven photocatalysts of CeF3/TiO2 nano-sheet film with upconversion properties for enhanced photocatalytic activity[J]. Materials Letters, 2016:189-192.
[9]  Lin M ,  Chen W X ,  Xu Z D . Complexing reagent-assisted microwave synthesis of uniform and monodisperse disk-like CeF3 particles[J]. Materials Letters, 2008, 62(17-18):2596-2599.
[10] [ Xianbin Wang,  Zheng H ,  Xu Q , et al. Electrochemical behaviors and electrolytic separation of Th(IV) and Ce(III) in ThF4-CeF3-LiCl-KCl quaternary melt[J]. Separation and Purification Technology, 2019.
[11] Jinjun, Lu, and, et al. Thermal properties and tribological characteristics of CeF3 compact[J]. Wear, 1997, 211(1):15-21.
[12] Tokita, Shigeki, Mironov, et al. Thermo-optical and magneto-optical characteristics of CeF3 crystal[J]. Optical materials, 2017, 69(Jul.):196-201.
[13]  Xue Q ,  Lu J . Physical and chemical effects of CeF 3 compact in sliding against Hastelloy C in temperature to 700°C[J]. Wear, 1997, 211(1):9-14.
[14]  Demkiv T M ,  VV  Vistovskyy,  Halyatkin O O , et al. Luminescence of polystyrene composites loaded with CeF 3 nanoparticles[J]. Nuclear Instruments & Methods in Physics Research, 2018, 908(NOV.11):309-312.
[15] [ Kai Li,  Chen J ,  Dan Z . Recovery of fluorine utilizing complex properties of cerium(IV) to obtain high purity CeF3 by solvent extraction[J]. Separation and Purification Technology, 2018.
[16]  ED  Thoma,  Shields H ,  Zhang Y , et al. EPR and luminescence studies of LaF3 and CeF3 under X-ray and laser irradiation[J]. Journal of Luminescence, 1997, 71(2):93-104.
[17]  Lu J ,  Xue Q ,  Zhang G . Effect of silver on the sliding friction and wear behavior of CeF 3 compact at elevated temperatures[J]. Wear, 1998, 214(1):107-111.
[18]  Qu X ,  Yang H K ,  Chung J W , et al. Polyol-mediated solvothermal synthesis and luminescence properties of CeF3, and CeF3:Tb3+ nanocrystals[J]. Journal of Solid State Chemistry, 2011, 184(2):246-251.
[19]  Tang C ,  Liu E ,  Hu X , et al. CeF_3/TiO_2 composite as a novel visible-light-driven photocatalyst based on upconversion emission and its application for photocatalytic reduction of CO_2[J]. Journal of Luminescence: An Interdisciplinary Journal of Research on Excited State Processes in Condensed Matter, 2014.
[20]  Ma L ,  Chen W X ,  Xu X Y , et al. Synthesis and characterization of novel flower-like CeF3 nanostructures via a rapid microwave method[J]. Materials Letters, 2010, 64(14):1559-1561.
[21] Sayed, F, N, et al. Solid state white light emitting systems based on CeF3: RE3+ nanoparticles and their composites with polymers[J]. Journal of Colloid & Interface Science, 2011.
[22]  Tang Y ,  Zhu J ,  Sun T , et al. Template-free synthesis, characterization and photoluminescence of hierarchical persimmon-shaped CeF3:Tb3+ microstructures[J]. Materials Letters, 2013, 107(SEP.15):20-22.
[23]  Yong C ,  Liu T ,  Chen C , et al. Facile synthesis of hybrid hexagonal CeF3 nano-disks on CeO2 frustum pyramids[J]. Materials Letters, 2013, 92(FEB.1):7-10.
[24]  Shimizu S ,  K  Horie,  Igarashi Y , et al. A new experimental method to search for T-violation using a sequential CeF_3 scintillating calorimeter[J]. Nuclear instruments and methods in physics research, 2019, 945(Nov.21):162587.1-162587.4.
[25]  Sahi S ,  Chen W . Luminescence enhancement in CeF3/ZnO nanocomposites for radiation detection[J]. Radiation Measurements, 2013, 59:139-143.
[26]  Qiu S ,  Dong J ,  Chen G . Synthesis of CeF3 nanoparticles from water-in-oil microemulsions[J]. Powder Technology, 2000, 113(1-2):9-13.
[27]  Wang Q ,  Su L ,  Li H , et al. Growth and spectroscopic characteristics of Er-doped CeF3 crystal[J]. Journal of Crystal Growth, 2011, 318(1):733-736.
[28]  Wei K ,  Guo C ,  Jie D , et al. Electronic structure of CeF 3 crystal[J]. Journal of Electron Spectroscopy and Related Phenomena, 1996, 79(96):83-85.
[29]  Merenga H ,  Andriessen J ,  Eijk C . Positions of 4f and 5d energy levels of Ce3+ in the band gap of CeF3, YAG and LSO[J]. Radiation Measurements, 1995, 24(4):343-346.
[30]  Incorporation of CeF 3 on single-atom dispersed Fe/N/C with oxophilic interface as highly durable electrocatalyst for proton exchange membrane fuel cell
